Sight glasses ensure a continuous monitoring of the liquid levels in the system.

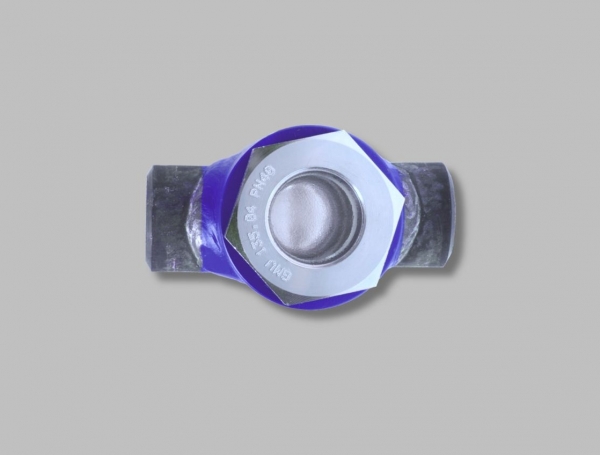

SGL Sight Glasses

AWP sight glasses are designed for installation in the refrigerant circulation of industrial refrigeration systems. They ensure continuous monitoring of the liquid levels in the system.

Inquire Now

Technical Features

  • Available in steel or stainless steel
  • Glass material: soda-lime glass
  • Working medium: refrigerants as per EN 378-1, non-corroding liquids and cold brine

Technical Specification

Design

straightway type

Material

steel or stainless steel

Nominal Size

3/8" - 4"

Nominal Pressure Level

362 psi, 580 psi

Temperature Range for Standard Valves

-58 °F to +248 °F

Temperature Range for HT Valve Series

+14 °F to +392 °F

Connections

welding ends as per DIN and ANSI, threaded ends
