To open and close the pipe butterfly valves use a disc rotated horizontally through 90° in relation to the flow direction.

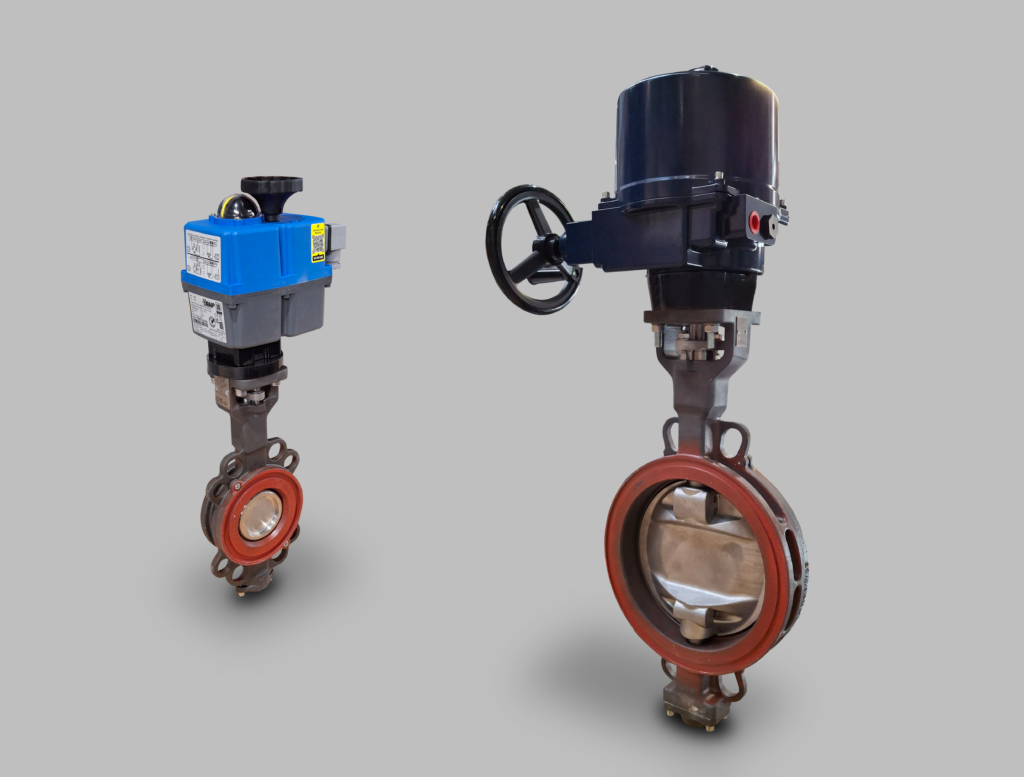

AKplus Butterfly Valves
AWP butterfly valves are designed for installation in industrial heating and refrigeration systems. The closing device is a disc that opens and closes the pipe by horizontal rotation in relation to the flow direction. The 90° rotation is exerted via the shaft and is either by a hand-operated lever or by electric or pneumatic actuators.
Technical Features
- Available in steel or stainless steel
- Selection of body material as per German DIN EN12284, AD2000 Series W
- Working mediums: refrigerants as per EN 378 p. 1, e. g. NH3, R22, R134a and blends with refrigerator oil; neutral, gaseous and liquid mediums; glycol-based cold brine
- Actuation either by hand-operated lever or by electric or pneumatic actuators
Technical Specification
Design
straightway type
Material
steel
Nominal Size
2" - 16"
Nominal Pressure Level
362 psi
Temperature Range for Standard Valves
-58 °F to +302 °F
Connections
flanged ends as per EN1092-1 with groove type D
Additional Information
hand-operated lever electric or pneumatic actuator
